Product Details

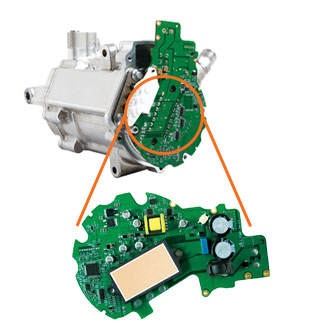

E-Compressor Motor Controller
E-Compressor Motor Controller is an all-in-one solution developed to control the operation of E-Compressor used for air-conditioning of PHEV/EV.
Detailed Description
E-Compressor Motor Controller is an all-in-one solution developed to control the operation of E-Compressor used for air-conditioning of PHEV/EV.
As a built-in type(integrated with the device), it achieved the control circuit optimization
CAN / PWM communication and diagnostic capabilities are provided.
It applies algorithm for precise control of position/speed without motor position sensor(high efficiency, low noise).
The logic ensuring high reliability is implemented.
The IGBT module of iA Group company was adopted.
Major Specification
Motor Control Method | Sensorless FOC(Field Oriented Control), MTPA, MFPT |
Efficiency | Up to 90% (system efficiency) |
Noise level | 3000 RPM(65dB), 4000 RPM(70dB), 6000 RPM(77dB) |
Standby Current | Less than 100µA |
High Voltage Discharging Time | Less than 5min.(Power off) |
Interface | LIN / CAN |
Etc. | Diagnostic function support |
Built-in Customizing IGBT Module | |
Reverse Polarity Protection |
Basic Specification
Input Voltage | Low | 8~16V |
High | 180~470V | |
Current Consumption | Operation | Max 30A |
ECU Off | Max 100㎂ | |
Motor Type | IPMSM (Interior Mounted Permanent Magnet Synchronous Motor) / BLDC | |
Motor Speed | 500 ~ 8600 RPM | |
Operation Temperature | -40~105℃ | |
Controller Efficiency | Up to 96% | |
Heat Dissipation Method | Refrigerant-Cooled | |
Waterproof Class | IP67 | |
Life Cycle | 15 Years / 241,000km |

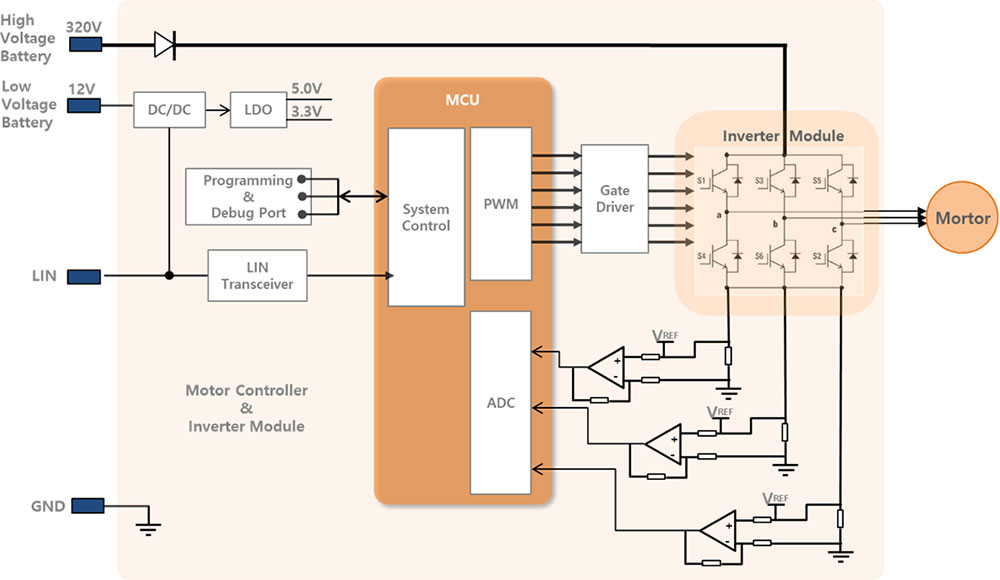

Block Diagram
