Product Details

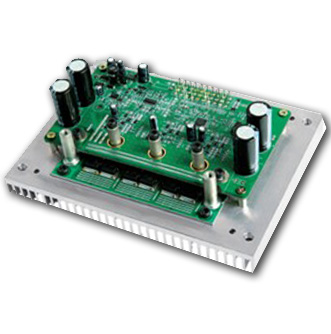

E-Scooter traction Motor Controller
E-Scooter traction Motor Controller is a controller for controlling the traction motor of electric scooter. It is a solution that applies the vector control algorithm for noise reduction and greater efficiency.
Detailed Description
E-Scooter traction Motor Controller is a controller for controlling the traction motor of electric scooter. It is a solution that applies the vector control algorithm for noise reduction and greater efficiency
It is applied to the drive motors featuring high torque at low speeds
- Momentum and climb ability acceleration were improved.
The MOSFET module of iA-affiliated company was adopted.
Customized and optimized product featuring the diagnosis function/overheat protection/waterproof and dustproof design.
Major Specification
| Motor Control Method | PMSM SVC(Sensored by Hall IC) Hall Sensor |
| Flux-weakening control | |
| Dust Resistant & Waterproof | IP67 |
| Cooling System | Air Cooling |
| Interface | ADC, Ext_Interrupt, RS485 or customer-requested communication |
| Etc. | Built-in Customizing MOSFET Module(Reliability improvement) |
Basic Specification
| Input Power | DC 60V |
| Output Capacity | 2kW |
| Motor Type | PMSM (Permanent Magnet Synchronous Motor) |
| Efficiency (Max.) | 90% |
| Operating Temperature | -40 ~ 105℃ |
| Protection Functions | UVLO / OVP/ SCP / OCP / OTP / Stall Current |

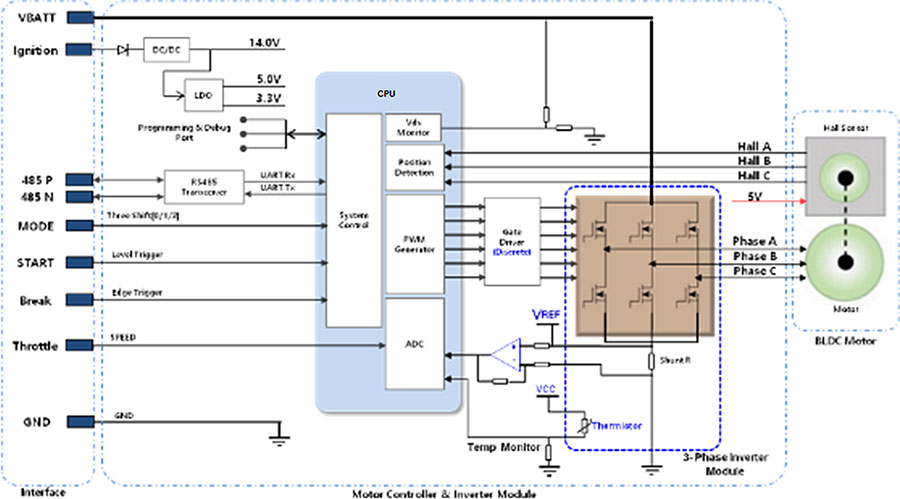

Block Diagram
