Side View Camera System

The Side View Camera System eliminates blind spots in the side-view mirrors of car and improves parking convenience and driving stability.

Advantages

Excellent low-light Features

  • - Clear image even in dark environment of 0.5 lux

Minimize blind spots and ensures wide field of view

Sharp image quality

Optimal resolution and anti-reflection

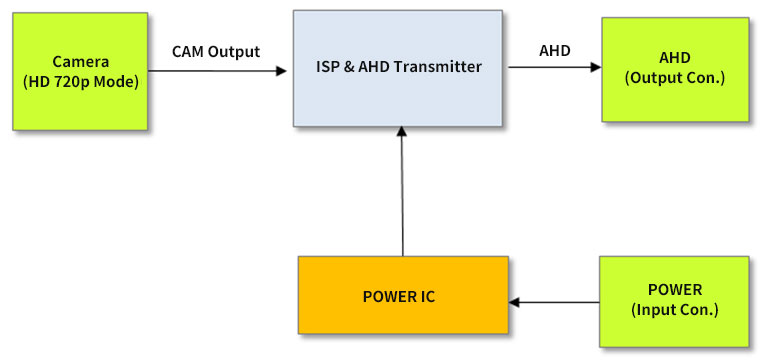

Camera

Camera Specification

Image High Definition and High Dynamic Range
Image size Diagonal 6.46 mm(Type 1 / 2.8)
Illumination Min. 0.5 lux
Input Drive Freq. 74.25 Mhz / 37.125 Mhz
Interface AHD

Display

Display Specification

TFT-panel IPS
Resolution 1280 X 3(RGB) X 800
LCD Size 10.1”
Interface LVDS

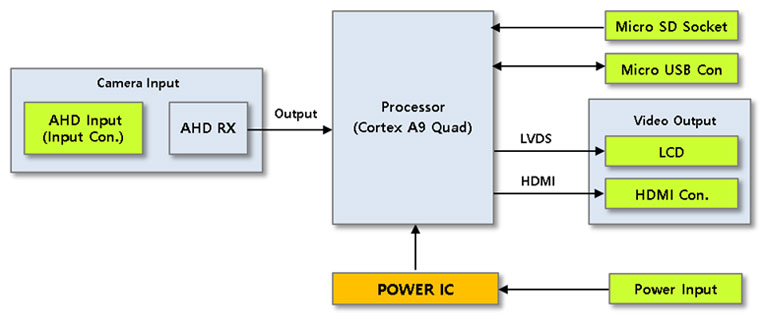

System

System Specification

Operating Temp -30 ℃ ~ 85 ℃
Operating Voltage Camera DC 5V
Display DC 12V
Module Size Camera 50mm x 47mm x 61mm
Display 24mm x 17mm x 27mm
