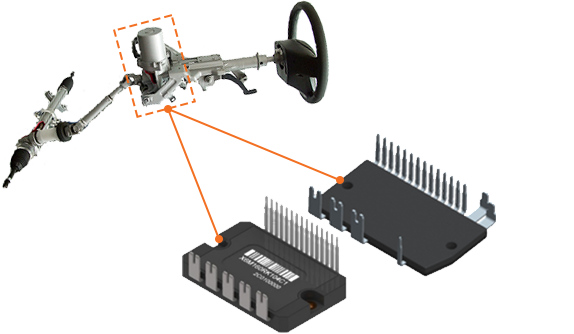

EPS(Electric Power Steering)
It is a MOSFET module optimized for driving the 3-phase EPS motors based on automotive batteries.
Competitiveness
Ensuring high reliability based on electronics
Ensuring 2.5kV isolation voltage and heat resistance reduction through DBC application
Convenient circuit design and PCB layout flexibility
Easy system manufacturing and reduction of manufacturing cost
Detailed Description
3-phase inverter module with MOSFET for electronics
Very low on-resistance and junction temperature as high as 175°C
Built-in high precision current sensor IC enables current sensing within 1% error rate
Built-in temperature sensor and snubber circuit

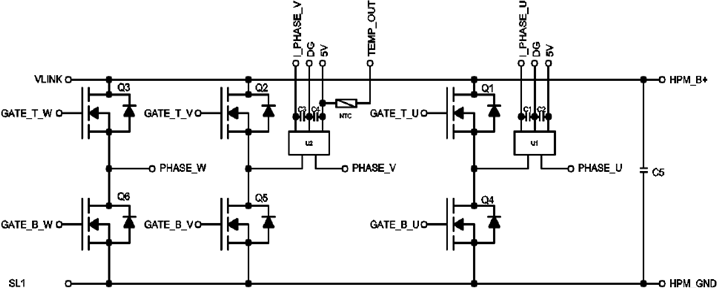

Circuit Design

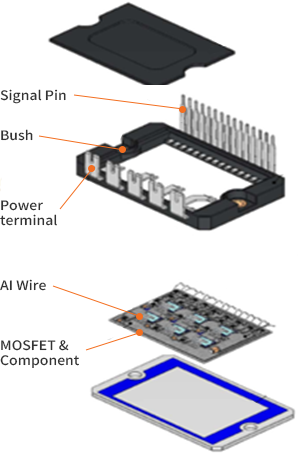

Configuration(Case Type)
| Feature | Name | SPEC. |
 |
Cover | PET GF30 |
| Housing Mold | PET GF30 | |
| Power terminal | Copper_C1220 6mm X :0.8T / current capacity : 96A |
|
| Signal terminal | Clad Metal | |
| Bush | Brass_C3601 | |
| DBC | Ceramic Substrate (Al2O3) | |
| Base Plate | Copper_C1100 |

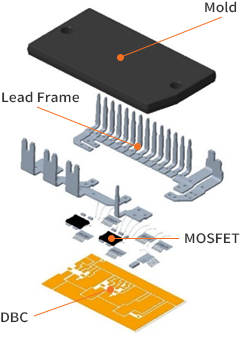

Configuration (Transfer Mold Type)
| Feature | Name | SPEC. |
 |
Mold | EMC |
| Lead Frame | Cu(C1020) | |
| MOSFET | Bare Die 40V | |
| Hall Sensor | 5V / 150A | |
| Thermistor | 1608 NTC 10Kohm 3% | |
| DBC | Ceramic Substrate (Al2O3) |
Specifications
| Item | SPEC. | Remark |
| Operation Voltage Range | 40V | Rated Voltage 12V |
| Drain current(continuous) | 160A | Tc = 25℃ |
| RDS(on) max | 1.6 ~ 22mΩ | VGS = 10V ID = 80A |
| Operation Temperature | -40 ~ 125℃ | |
| Mounting Screw Torque | 1.3 ~ 1.5N.m | M3 |
