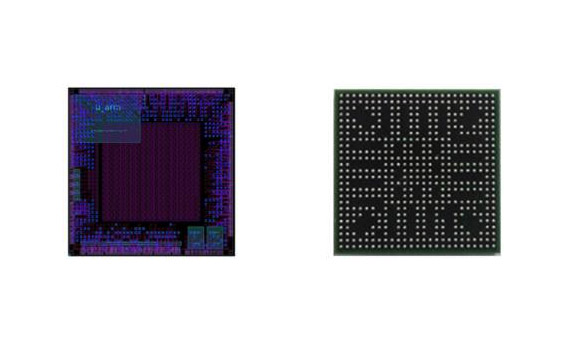

RAPIEnet芯片是支持 RAPIEnet(Real-time Automation Protocols for Industral Ethernet)的最适合以太网通信 Application的高性能多媒体处理器。基于ARM的处理器， 提供最佳的以太网通信及多媒体性能，整合实时视频编码器、4频道以太网接口、RAPIEnet 底板接口等所有提升的功能。

ARM Cortex™-A8 based CPU Subsystem with NEON

• - 32/32KB I/D Cache, 256KB L2 Cache
• - Operating frequency up to 800MHz at 1.2V

64-bit Multi-layer system bus architecture

1-channel NOR/NAND interface, 1-channel DDR3 interface

Up to 1280x960 pixels Camera interface

MJPEG encoder and decoder maximum resolution is 8192x8192

H.264 encoder and decoder maximum resolution is 1920 x 1088

2-ch SD/SDIO/HS-MMC interface.

3-ch I2C interface, 2-ch SPI interface

2-ch CAN interface

4-ch Giga-MAC Ethernet interface

RAPIEnet Backplane logic interface

2-ch USB 2.0 OTG supporting high speed 480Mbps

5-ch UART interface including 2-channel high-speed UART
