电力半导体模块
产品详细

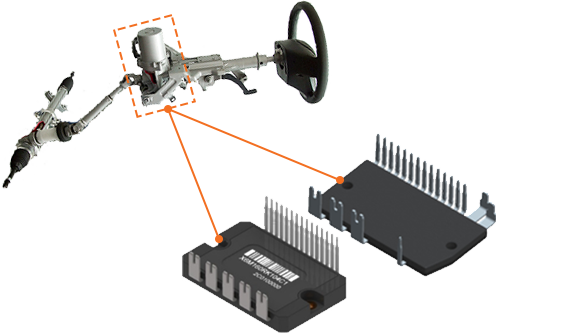

EPS(Electric Power Steering)
以车载电池为基础的用于驱动三相 EPS发动机的优化设计的MOSFET模块。
竞争力
确保电装标准的高可靠性
通过使用DBC 确保 2.5kV的绝缘电压及减少热阻
提供电路设计便利性及 PCB Layout的灵活性
简便的系统制造及可节俭制造成本
详细说明
采用电装 MOSFET的三相变频模块
极低的温阻和 175°C的高结温
内置高精密电流传感器 IC，可实现误差率 1%以内的电流感知
内置温度传感器和斯奈伯电路

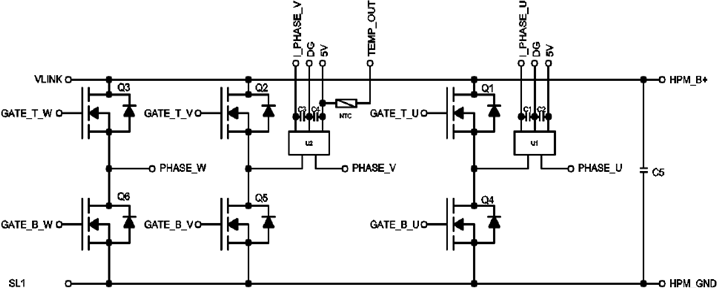

电路设计

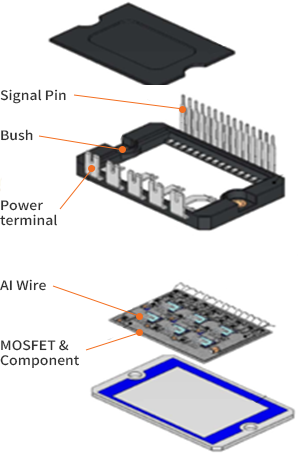

构成(Case Type)
| Feature | Name | SPEC. |
 |
Cover | PET GF30 |
| Housing Mold | PET GF30 | |
| Power terminal | Copper_C1220 6mm X :0.8T / current capacity : 96A |
|
| Signal terminal | Clad Metal | |
| Bush | Brass_C3601 | |
| DBC | Ceramic Substrate (Al2O3) | |
| Base Plate | Copper_C1100 |

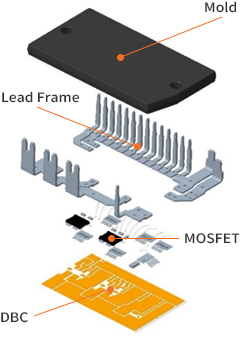

构成(Transfer Mold Type)
| Feature | Name | SPEC. |
 |
Mold | EMC |
| Lead Frame | Cu(C1020) | |
| MOSFET | Bare Die 40V | |
| Hall Sensor | 5V / 150A | |
| Thermistor | 1608 NTC 10Kohm 3% | |
| DBC | Ceramic Substrate (Al2O3) |
规格
| Item | SPEC. | Remark |
| Operation Voltage Range | 40V | Rated Voltage 12V |
| Drain current(continuous) | 160A | Tc = 25℃ |
| RDS(on) max | 1.6 ~ 22mΩ | VGS = 10V ID = 80A |
| Operation Temperature | -40 ~ 125℃ | |
| Mounting Screw Torque | 1.3 ~ 1.5N.m | M3 |
